NEOPANEL

HIGHLY DURABLE

  • Sustains shape & dimension (low thermal expansion)

  • Strong bonding between the skins and the core

  • High resistance to wear & fractures

HIGH THERMAL RESISTANCE

  • Long Life Cycle with no loss of thermal Insulation

  • At 80 mm  (3.15 inches) 16.5 R value

HERMETICALLY SEALED

THERMAL & ACOUSTIC ISOLATION

  • Precision computer guided cut out.

  • Fully adjustable to assemble elements

   (Doors, windows, wiring, plumbing, ventilation etc.)

UV BLOCKER

99% UV Blocker extends life cycles

and resist brittling, fading and yellowing.

FAST & EASY ASSEMBLY

Lightweight & extra large panel.

Panel size (for transport reasons)

Up to 11.95 m x 2.55 m (39ft x 8.4 ft)

HEALTHIER

East clean and maintain.

Non Corrosion \ Non Toxic.

Fungi, Mold & Termite & Rodents resistant.

Sound dampening

Stem Sterilizable to 120 C (248 F )

SKIN - Reinforced COMPOSITE glass PP

Unique array of properties, the cutting edge
of development of composite laminated materials
& technologies, engineered to meet the needs
of highest-end requirements for aggressive working
environments like trucks' flooring, scaffolding and skins
for sandwich panels,  Air and Sea containers, and more.

Technical Property
Density (Kg/dm³)                            1.55    (lb./ft3  96.76)
Heat deflection temperature (c°)    155  (f° 311)
Service temperature (c°)      -40 to +110 (f° -40 to +230)
Impact strength (J)*                        150 - 360
Elongation at yield (%)*                  3.5
Tensile modulus of elasticily (GPa) 17 in both (X/Y)
Tensile strength in both directions (X/Y)  >> 350 MPa

FOAM CORE - PET
Technical properties
Thermal conductivity: 0,027 - 0,028 W/m.K
Compression strength: ISO 844     0.2 MPa
Shear strength: ISO 1922     0.3 MPa
Shear modulus: ISO 1922     5.0 MPa
Shear elongation: ISO 1922     15.0    %
Density: 65 kg/m3 (4.05 lb./ft3)
NEO PANEL - PET foam are CFC / HFC free
Max width up to 80mm (3.15 inches)

DE-ICING ROOF PANEL

ALL THE BENEFITS IN ONE

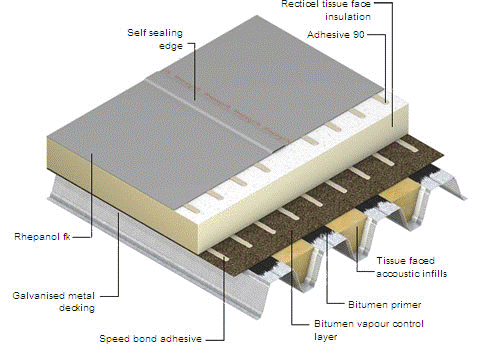

TRADITIONAL ROOF

Construction for cold environment covered with carogate panels and isolation panels. Many layers, long assembly and complex construction to carry the snow.

  • Roof at high risk during  storms

  • Snow removal is needed

  • No snow removal

  • No risk of roof crunch

OUR DE-ICEING SNOW ROOF.

Our heating material (THERMATEX  12V) can be embedded in our roof panels. Defrosting ice and snow on the roof which reduce dramatically the need for high contraction properties. Fast and easy assembly, durable, long life cycle, light weight.

SNOW IMPACT ON THE ROOF - DANGER ZONES

The depth is different, but the risk is similar

122+cm

of light\dry snow

30+cm

of heavy\wet snow

10+ cm

of ice



STOPUV

                                                      EXTREME UV PROTECTION FILM

STOP UV PROPERTIES

Benefits

  • UV protection for long life-cycle

  • Durable, Strong, Lightweight

  • Dimensional stability

  • Heat & Fire resistant

  • Resilient in extreme weather conditions

  • Excellent chemical resistance

  • High surface smoothness and brilliance

Description

  • StopUV™  film is  extremely  effective as a UV radiation blocker.

  • StopUV™ is a white Opaque Polyester film, with  one side chemically primed for

  • adhesion to polyolefins.

  • StopUV™ integrates  good dimensional stability and excellent chemical resistance

  • and high strength and durability.

Applicable

  • Designed for dramatically stable bonding to polyethylene and Polypropylene-based polymers and co polymers.

  • Designed for applications requiring whiteness and opacity including UV stability.

  • Designed for dramatically stable bonding to polyethylene and Polypropylene-based polymers and co polymers.

  • Designed for applications requiring whiteness and opacity including UV stability.

  • Save machinery

  • materials

  • labor time

  • Ensures best Gluing

  • No corona treatment

  • No atmospheric treatment

  • No additional priming prior to lamination

                          ™

EXTREMEUD

 UD TAPE PROPERTIES

UD GPP Description​

Our advanced glass-fiber spreading and impregnation technology and “smart chemistry” creates glass-fiber UD tape with outstanding properties. With glass contents between 60% and 70% we can achieve high tensile-strength tear-resistance up to 1050 Mpa and high E-modulus up to 38 GPa .

Durable, lighter, higher tensile-strength and stiffness..

Polymers: Polypropylene homo-polymer or co-polymer, HDPE, PA6

Fibers: glass fiber, carbon fiber, aramid

UDX GPP: cross-ply on roll, consisting of 2 layers UD in 0/90 °

UniDirectional

Width: 15 mm up to 1250 mm
Thickness: 0.18 mm up to 0.40 mm

Cross-Ply (Multi layer UD)

​ Width: 600 mm up to 2850 mm
Thickness: 0.4 mm up to 0.80 mm

PANEL PROPERTIES

 REINFORCED GLASS-POLYPROPYLENE PANEL

                                ™

EXTREME

Skin: Uni directional or Cross-Ply in 0/90 multi layers
Core: Honeycomb or foam
Dimensions: up to 280 cm width Thickness up to 10 cm

Sandwich panel test in our labs

EXTREME PRODUCTS

EXTREME LAMINATED SHEET

EXTREME SANDWICH PANEL

Unique combination of properties in the latest development of composite laminated sheet, intended to meet and exceed the requirements of extreme, harsh work environments, such as truck's flooring and walls Sea and Air shipping-containers

Reinforced glass-polypropylene Structure: Uni directional or Cross-Ply in 0/90 multi layers
Dimensions: Up to 280 cm width Thickness up to 1 cm

Our unique Integration methodology of the honeycomb core and the composite skins creates exceptional structural strength that is sustained even under harsh conditions and for long life-cycles.

SAMPLES OF EXTREME PANELS

EXTREME sandwich panel

EXTREME sandwich panel

EXTREME laminated sheet

TM

NEOBORD

Composite scaffolding board

 NEOBORD insert into aluminium U      scaffolding frame

Cup Lock

Quick Stage

Speed Ring

K-Stage

Ring Lock

Quick Lock

We produce boards in standard sizes to fit all global systems standard sizes.

Also, By request: Customizable production to fit any size/Load Class requested by client.

NEOBORD  EXAMPLES

TM

NEOBORD insert into aluminium L      scaffolding frame

TM

NEOBORD STRUCTURE

TECHNICAL PROPERTIES – Composite Skin reinforced fiberglass / PP U.D

Density (Kg/dm³)                                         1.55    (lb./ft3  96.76)
Service temperature (c°)                             -40 to +90 (f° -40 to +194)
Elongation at yield (%)*                               3.5
Tensile modulus of elasticity (GPa)              17 in both (X/Y)
Tensile strength in both directions (X/Y)      >> 350 MPa
UV resistance                                               99%


OUR PROPRIETARY PRODUCTS FOR THE SCAFFOLDING INDUSTRY

                                                             TM

EXTREME PANEL

DURABILITY, RESILIENT AND ULTRA LIGHT COMBINED IN ONE PANEL CREATING THE NEXT GENERATION OF SCAFFOLDING BOARDS.

Our proprietary multi-layered woven glass PP fiber, combined with our unique production process, created the next-generation composite scaffolding-panels with unique enhanced properties that meets and exceeds the requirements of the extreme working environment in the construction industry.

Safety

               STOPUV  COATING FILM                         (FUSED TO THE EXTREME PANEL)

EXTRA UV PROTECTION FOR YOUR SCAFOLDING-PANELS

STOPUV™ performance will extend your scaffold lifetime and keep it maintenance free. Our coating film provides excellent dimensional stability and chemical resistance, high strength and durability, and is extremely effective as a UV blocker with 98% protection capacity.

SHIPPING CONTAINERS

Light

Weight

Durabale

Chemical resistance

Weather resistance

Thermal insulation

Large panel

Recycabale

98% UV

Bloker

Easy

install

              EDUCE FUEL CONSUMPTION                 USING LIGHT WEIGHT PANELS

EXTREME™ PANEL Lightweight  panels  reducing dramatically the weight,

flooring of small lorry  9.0m² reduce weight  60 kg

Traditional Plywood           11.5 kg/m²           103 kg NeoUD sandwich panel  4.8 kg/m²               43 kg

EXTREME™ ONE STRONG PANEL

Easy & fast to install,  long life cycle with minimum maintenance

Standard properties

Light weight
Flooring - 4.8 kg/m² ( wood 11.5kg/m²)
Walls      -  3.6 kg/m²
Color - white Or by request printing
Sizes and colors: customizable to your needs.

OUR PROPRIETARY MATERIALS FOR SHIPPING CONTAINERS



EXTREME PANEL

DURABLE, RESILIENT AND LIGHTWEIGHT COMPOSITE-SANDWICH PANELS ENABLING THE CREATION OF THE NEXT GENERATION’ SEA CONTAINERS

Our proprietary multi-layered woven glass PP fiber combined with unique production methodologies and process creates the next generation of composite products  with advanced properties to meet and exceed the demands of  harsh and extreme working environment of the Sea-freight / Shipping industry.

STOPUV™ FILM

(FUSED TO THE EXTREME PANEL)

EXTRA UV PROTECTION FOR YOUR  SEA CONTAINERS

STOPUV™ performance will extend your containers lifetime, protect it from UV rays and weather deterioration, reducing wear and tear and Maintenance. Our STOPUV coating film has excellent dimensional stability and excellent chemical resistance, high tensile-strength, durability yet extremely effective as a UV radiation blocker with 98% protection capacity.

EXTRA PRODUCTS

CT made from KAYPLA  offers best electromagnetic transparency,

X-ray transparency, impact resistant with a low thermal conductivity.

SNOW MELT and DE-ICING

High-efficiency THERMATEX heating-fabrics embedded just below the surface of roofs, driveways, bridges, transportation and other critical public-access and infrastructure.

Snow melt and de-icing Systems create the exact temperature where it is needed, dramatically reducing heating costs, labor and usage of harsh & toxic chemicals. The heating fabric is embedded in the EXTREME sandwich panel, increasing system durability and ensuring a long life cycle.  The system is easy to install, and is maintenance free.

                           ™

 NEO 52

Fast

assemble

Light

Weight

Durabale

Chemical resistance

Healthy

house

Thermal insulation

Large panel

280\11800 cm

Recycabale

Maintenance

free

PREFAB MODULAR HOUSING METHOD

ONE HUGE WALL

Our  production line produce a extreme huge panel (walls) 280 cm by 11,800 cm and longer which able us to achieve a very long and super durable facades. Our walls create simple,  high standard yet affordable and modern house. No Cracks due to soil movement.

No walls connections insure the durability of the structure.

ASSEMBLING

Our Extreme housing system design to meet the need of building modern homes, using high quality and mass production methods while maintaining the smallest environmental foot print

PREFAB INFRASTRUCTURE & FINISHES

Our wall system manufactured with the internal infrastructure. The external & internal finish surfaces is embedded during the panel production. No extra color, stocco, spatula works is needed. An automatic cutting system produce high accuracy cut out walls panel.

 KIT HOUSING

We understand that in order to get a fair price all the items should be included.So when assembly start you will have all the items as part off your kit. The architect and our project manager will offer the best items to your house mass product sink, windows etc...to your need.

SUSTAINABLE COMMUNITIES

Going beyond providing housing solutions,  we helps the community to effectively and conveniently construct an entire neighborhood include all the public facilities building and needs. Our holistic methods complete package is a solution  designed to create a communities facilities  in areas where it is really needed. Government agencies, organizations, and independent contractors, will find a solution to carry out a large-scale community project on-time and on-budget. We have collected all the components necessary for you, providing a superior solution that lets you focus on what matters – creating prosperity and improving the lives of those in local communities.

INNOVATIVE THERMAL CONDUCTIVITY EFFICIENCY

EXTREME house shell panels embedded with a superior 98% UV blocker film which prevents the sun's rays and dramatically reduce the need to provide thermal insulation in hot zones. The film not allow the heat to penetrate into the panel and from there and into the structure.

HEALTHY HOME

 Innovative technology have  significant properties as Chemical Resistance makes it a best choice for interior walls enabling you to clean the walls with cleaning agents as easy way to Keep the walls clean Hygiene. The panel rejects inhibited growth of  pathogens (rejects bacteria and fungi…).

MAINTENANCE FREE SYSTEM     Strong, tough,and acts as a moisture barrier. There is no need for periodic maintenance like painting the walls can be clean with water and detergents that enable savings maintenance and maintaining hygiene environmen

Safety

High resistance to chemicals.
Highly impact-resistant and durable
Light weight

Easy to handle and to install

No rust, No attack by bacteria & fungi

Eco- friendly

100% recyclable
Extended product life cycle

Smaller environmental footprint.

Energy efficient

Extreme thermal isolation properties

High durability for extreme weather conditions.

Huge size panel reduce isolation between the units.

Optional - Opaque \semi transparent panel for in light during day time. yet with high thermal isolation.

Cost - effectiveness

High ROI

Reducing weight saves construction.

Fast & easy to prefab and install
Save labor time.
Easy to maintain & clean
UV resistant
Extended product life cycle.

Standard properties

Light weight walls
Color - white Or black
Sizes: customizable

Sandwich panel Core : Honeycomb or foam
